Teletek SensoMAG B12

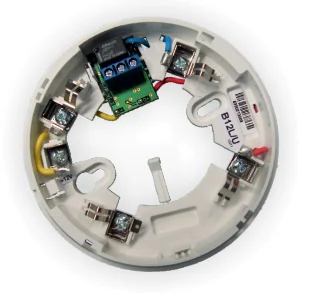

SensoMAG B12L/U is an alarm base (12V) with relay output. The
base has two operation modes: Latch and Unlatch.
The base is designed for conventional detectors SensoMAG series:
F10, F10B, R20, S30 and M40 for applications in security alarm
systems. The base is with low profile design and reliable contact
system. It is possible to lock the detector to the base for extra
security.
Share:
Technical and Environmental Specifications:
Power Supply . . . . . . . . . . . . . . . . . . . . . . . 10-15V
Consumption in stand-by mode . . . . . . . . . . <50µA
Consumption in FIRE mode . . . . . . . . . . . . . <25mA
Reset time in Unlatched operation mode . . . . 7 – 9 sec
Relay terminals . . . . . . . . . . . . . . . . . . . . . . 30V/0.5A
2 Wire Gauge for terminals . . . . . . . . . . . . . . . 3.0mm
Operating temperature. . . . . . . . . . . . . . . . . -10°C to +60°C
Relative humidity resistance . . . . . . . . . . . . . (93 ± 3)% @ 40°C
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . ~46g
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 102x11mm
Material (plastic), color . . . . . . . . . . . . . . . . ABS, white
